Caseum
Caseum is a simple approach to software architecture that combines multiple views to boost understanding and empathy across roles.
Video introduction
Section titled “Video introduction”Multiple views
Section titled “Multiple views”Caseum combines these views:
- Components using C4
- Actors using roles
- Stories using Gherkin
- Events using event storming
- UI using wireframes

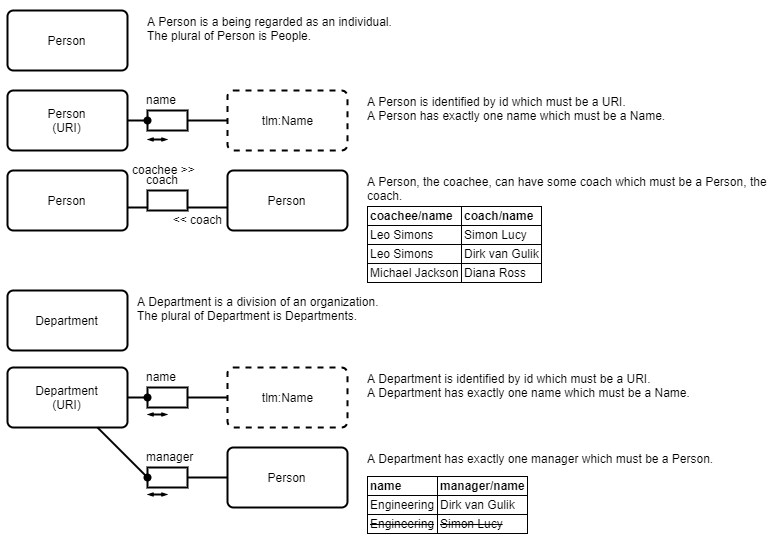

- Models using facts
Together these views fully describe a software system.
Not all projects need all views.
Lightweight approach

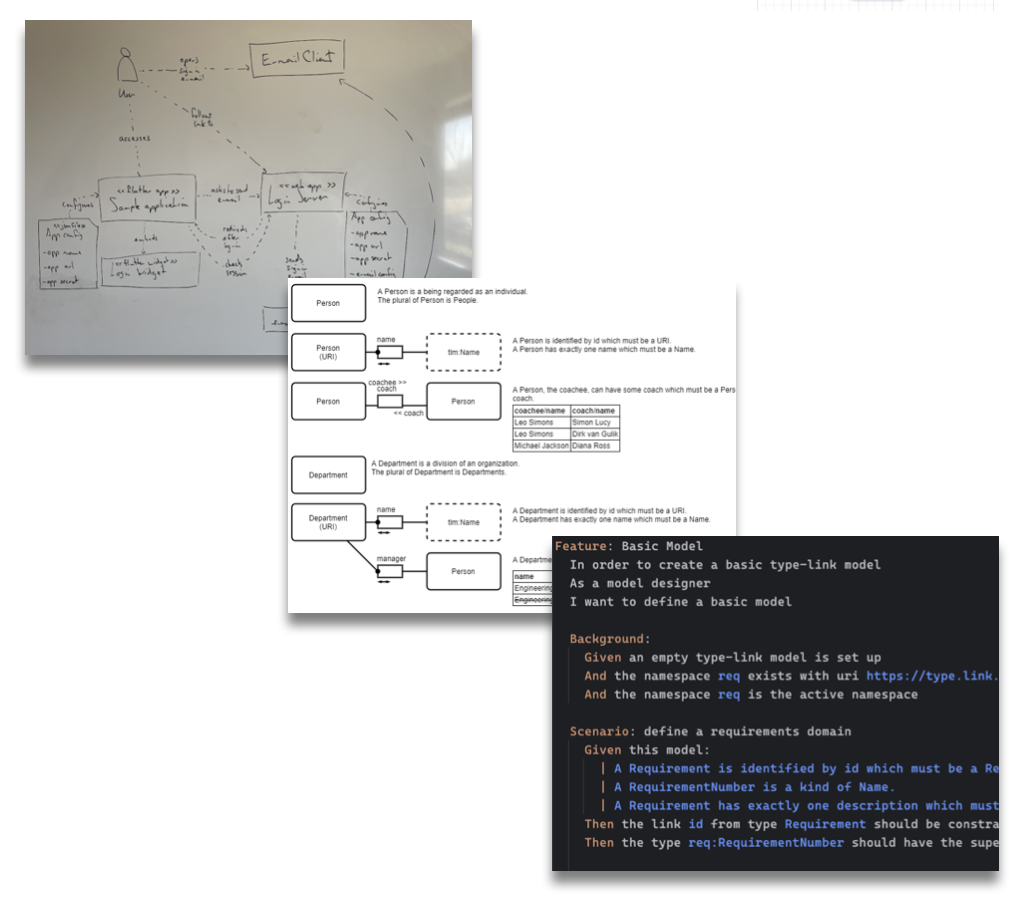

Section titled “Lightweight approach”Caseum is for doing just enough architecture. It has three stages:
- whiteboarding & dialogue
- digital diagrams & decision records
- models as code & executable specifications
Not all projects need all stages.
See the guide on stages of architecture. See the guide on as-is and to-be designs for working on existing projects.

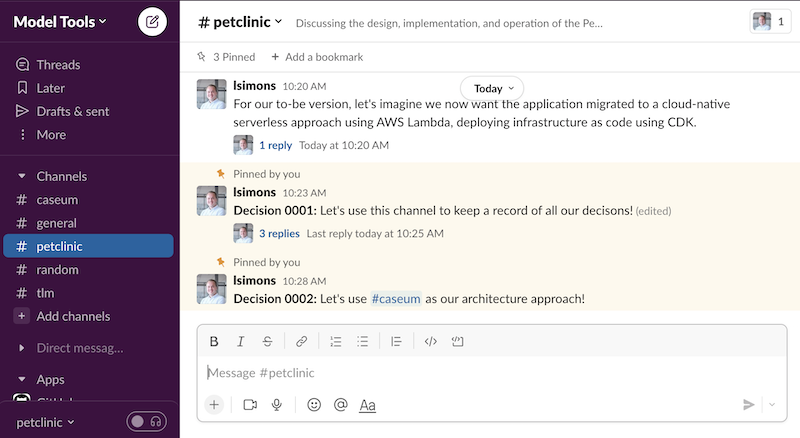

Recording decisions
Section titled “Recording decisions”
Architecture records the important design decisions for a system. The records are for communicating with current and future people working on and with the software.
See the guide on recording decisions.
The primary tools used by Caseum are:
- Whiteboards, markers, and sticky notes
- Draw.io for digital diagrams
- Markdown text files for decision records
- Model specification in structured text formats (Structurizr C4, Gherkin, LinkML and AsyncAPI JSON)
See the guides on whiteboarding architecture and on using draw.io for architecture.
Different tools are available per view per stage:
| Whiteboarding & Dialogue | Diagrams & Decision Records | Models & Executable Specifications | |
|---|---|---|---|
| Components | Boxes & lines | C4 Draw.io Library | C4 as Code |
| Actors | Roles & needs | Role Markdown Template | - |
| Stories | Goals & epics | User Story Markdown Template | Gherkin |
| Events | Event Storming | ES Draw.io Library | AsyncAPI |
| UI | Boxes & lines | Wireframes Draw.io Library | - |
| Models | Circles & lines | Model diagrams | LinkML |
